Description

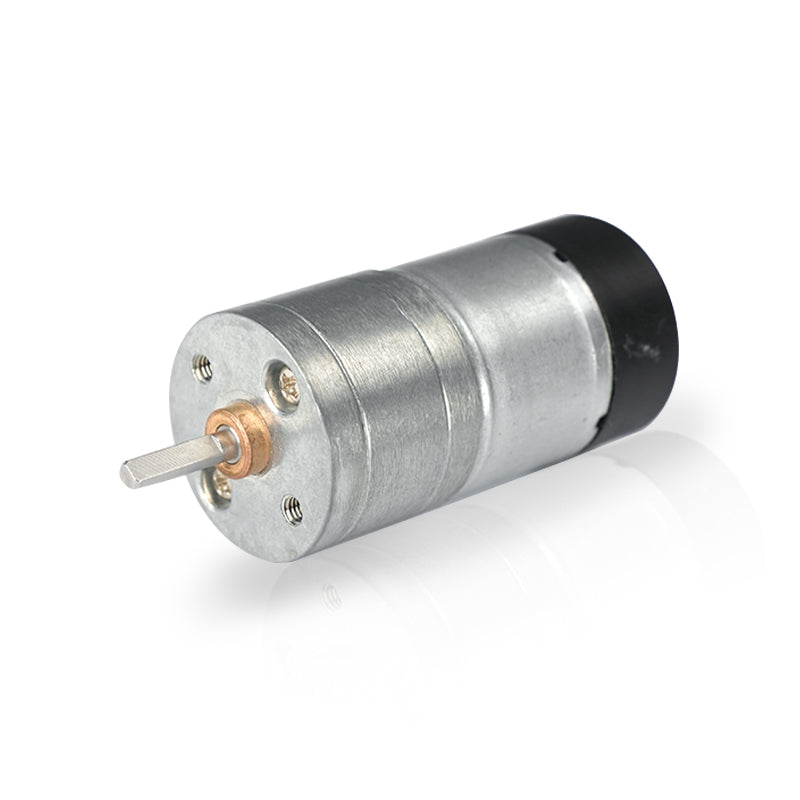

dc gear 310 DC Gear Motor with Magnetic Hall Encoder All-Metal Gears 7.4V 450RPMProduct Introduction The Hall speed measurement code disc is a speed measurement module that utilizes Hall sensor encoders. Equipped with a strong magnetic disc, it generates AB phase output pulse signals, enabling the detection of motor rotation direction and speed. It is suitable for various intelligent vehicles with high speed requirements, such as Mecanum wheel vehicles, balance cars, navigation positioning vehicles, etc. Wrapped Rear Tail Shell
Product Introduction
The Hall speed measurement code disc is a speed measurement module that utilizes Hall sensor encoders. Equipped with a strong magnetic disc, it generates AB phase output pulse signals, enabling the detection of motor rotation direction and speed. It is suitable for various intelligent vehicles with high-speed requirements, such as Mecanum wheel vehicles, balance cars, navigation positioning vehicles, etc.
Wrapped Rear Tail Shell
The motor features an wrapped rear tail shell designed to provide robust protection for the PCB circuit and magnetic ring, shielding them from external influences. This design enhances safety and extends the overall service life of the motor.
Permanent Magnet Brushed Motor
The permanent magnet DC motor offers rapid response, startup torque, and smooth shifting. These features eliminate vibrations during speed changes from 0 to the maximum, enabling it to handle larger loads during startup.
Suitable for Various Scenarios
With a 1:20 ratio, the low-speed configuration matches a 1kg.cm torque, allowing the motor to adapt to a variety of chassis materials and diverse scenarios.
Durable Metal Gear
The motor incorporates a full metal gear and metal output shaft, reducing power consumption and extending the motor's service life.
48mm Rubber Tyre
Motor Mounting Bracket
| Product Parameters | |||
| Model | JGA27-310R20 | Stall current | ≤1.4A |
| Motor rated voltage | 7.4V | Rated current | ≤0.65A |
| Motor type | Permanent magnet brushed | Gear ratio | 1:20 |
| Output shaft | 3mm diameter D-shaped eccentric shaft | Encoder type | AB phase incremental Hall encoder |
| Stall torque | ≥1.0kg.cm | Encoder power supply voltage | 3.3-5V |
| Rated torque | 0.4kg*cm | Number of magnetic ring lines | 13 lines |
| Rotation speed before reduction | 9000rpm | Connector type | PH2.0 6PIN |
| Rotation speed after reduction | 450±10rpm | Function | With built-in pull-up shaping, microcontrollers can directly interpret signal pulses |
| Rated power consumption | 4.8W | Microcontroller weight | About 70g |
| PIN Function | |
| Model | JGA27-310R20 |
| Stall current | ≤1.4A |
| Motor rated voltage | 7.4V |
| Rated current | ≤0.65A |
| Motor type | Permanent magnet brushed |
| Gear ratio | 1:20 |
| Output shaft | 3mm diameter D-shaped eccentric shaft |
| Encoder type | AB phase incremental Hall encoder |
| Stall torque | ≥1.0kg.cm |
| Encoder power supply voltage | 3.3-5V |
| Rated torque | 0.4kg*cm |
| Number of magnetic ring lines | 13 lines |
| Rotation speed before reduction | 9000rpm |
| Connector type | PH2.0 6PIN |
| Rotation speed after reduction | 450±10rpm |
| Function | With built-in pull-up shaping, microcontrollers can directly interpret signal pulses |
| Rated power consumption | 4.8W |
| Microcontroller weight | About 70g |
Encoder Gear Motor Packing List
Encoder Gear Motor + Motor Bracket Packing List
Encoder Gear Motor + Motor Bracket + Tyre Packing List
Specifications
| Item | Specification |
| Model | JGA27-310R20 |
| Stall current | ≤1.4A |
| Motor rated voltage | 7.4V |
| Rated current | ≤0.65A |
| Motor type | Permanent magnet brushed |
| Gear ratio | 1:20 |
| Output shaft | 3mm diameter D-shaped eccentric shaft |
| Encoder type | AB phase incremental Hall encoder |
| Stall torque | ≥1.0kg.cm |
| Encoder power supply voltage | 3.3-5V |
| Rated torque | 0.4kg*cm |
| Number of magnetic ring lines | 13 lines |
| Rotation speed before reduction | 9000rpm |
| Connector type | PH2.0 6PIN |
| Rotation speed after reduction | 450±10rpm |
| Function | With built-in pull-up shaping, microcontrollers can directly interpret signal pulses |
| Rated power consumption | 4.8W |
| Microcontroller weight | About 70g |
